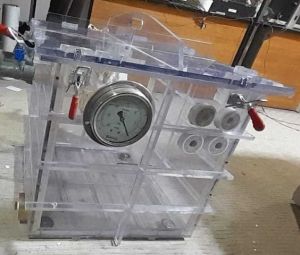

Acrylic Vacuum Chamber Cube

Chamber Specifications :

• TIS:VC393939-REC-TL
• Condition:New
• Availability:Usually ships 2-3 weeks from order date

• vacuum chamber with top-loading, hinged lid is ideal for product testing applications requiring 360° visibility.

• Acrylic Chamber will be Reinforced with Stainless Steel 304 grade Structure.

• All our chambers can be fully customized as per the specification and Requirements.

• Acrylic Vacuum Chamber; includes vacuum gauge and valves.

Key Features:

• Ideal for degassing Large parts and mixed liquids, vacuum encapsulation, and general purpose vacuum experiments
• Provide a safe, convenient way to transport moisture- and particle-sensitive materials
• Clear acrylic construction provides full visibility of parts
• Sturdy construction and inlaid O-ring seal supports
• Solvent welding, 304 stainless steel and chrome-plated hardware ensure a completely noncontaminating environment
• Top-loading, removable clamped lid
• 360° visibility perfect for product testing applications
• Custom vacuum chambers are available to match your application specifications.

These  vacuum chambers provide a safe, reliable means for transporting contamination- and moisture-sensitive parts. They are also ideal for degassing operations, biological tests, material testing and other processes requiring sustained low and intermediate vacuums.

* Consult your country electrical engineer for power supply.

*All the given Price are based on Ex works. Fright, Insurance, Duties and Forwarding are not included.

• Chamber Material:                           Clear Cast Acrylic 50 mm Thick
• Lid Material:                                     Clear Cast Acrylic 50 mm Thick
• Lid Configuration:                           Top Loading, Hinged and Pistons attached
• Reinforcement Material :                Stainless Steel 304
• Seal:                                                 O-Ring
• Approximate capacity Volume:     520.32 Liters
• Inside Dimensions (inch) :            42 Length X 42 Width X 18 Height
• Product Dimensions (inch):          46 Length X 46 Width X 24 Height

Pump Specifications :

Capacity :               7500 LPM

Ultimate Vacuum : 0.001mm of Hg( at suction port by McLeod Gauge

Pump RPM :           525 HP

Pump Speed:         7500 LPM

Motor H.P:             12.5 H.P 3 Phase

Motor :                   1440 RPM

Product Dimensions (inch): 48 Length X 48 Width X 16.5 Depth

Shipping Dimension: (inch): 60 Length X 60 Width X 24 Depth
